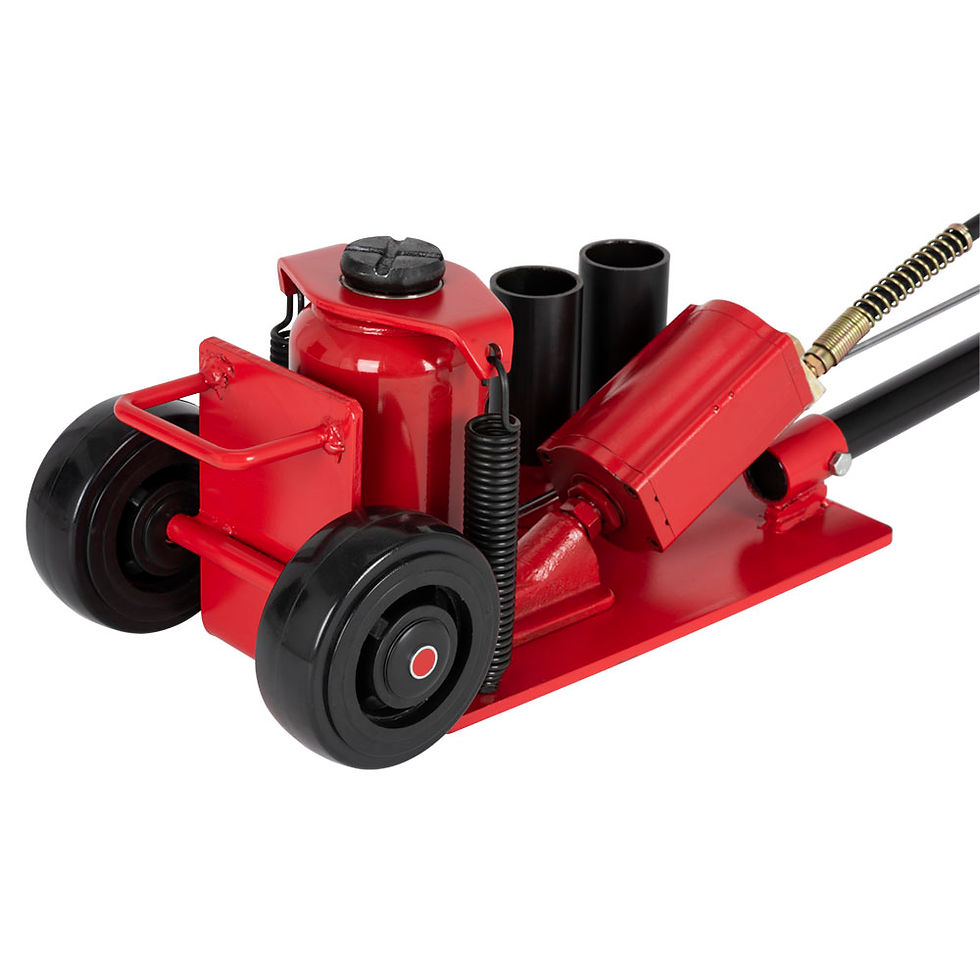

20 TON AIR ASSIST FLOOR JACK
SKU: 520
AFF 520 Designed for lifting trucks, buses, trailers, or other heavy equipment in the shop or on the road, these axle floor jacks are compact, easy to maneuver, and highly efficient.
- Ideal for lifting trucks, trailers, and other heavy-duty equipment
- Lightweight design is ideal for mobile repair service
- Self-retracting ram eliminates manual lowering of the jack
- Oil-resistant polyurethane-wrapped wheels provide increased mobility around the shop floor
- Fast, efficient air motor reduces time to lift the load
Narrow chassis design fits easily between tandem wheels
Overload and bypass safety valves prevent the jack from being used beyond its rated capacity
Wiper seals protect hydraulic system from outside contaminants
Integrated filter protects air motor and maximizes service life
Hand grip can be used to store in the vertical position
Meets ASME PASE 2019 Safety Standards
SPECIFICATIONS
ADDITIONAL INFO
|
Model |
Capacity |
Ram Lift |
Low Height |
High Height w/ Extensions |
Length |
Overall Width |
Handle Length |
Weight (lbs) |
|
520 |
20 |
3.94" |
8.66" |
23.55" |
17.78 |
8.9" |
35.5" |
55 |
